How to use dual-extruder 3D printer with dissolvable filament

Dual-extruder 3D printer is very popular in the world, and believe everyone knows Dual-extruder 3D printer can print 2 colors. Now we are introducing dissolvable  filament.

Today, we are printing movable car, Bule PLA filament on right extruder, Dissovlabe filament on the left extruder. About printing setting, absolutely we will printer main part by PLA, support filament by dissolvable filament. After printing, just like below pictures,

Mastech 3D BEAVER III
Mastech 3D BEAVER III

At this time, the first step is not acid the support, but using hand or tool to cut off the support filament.

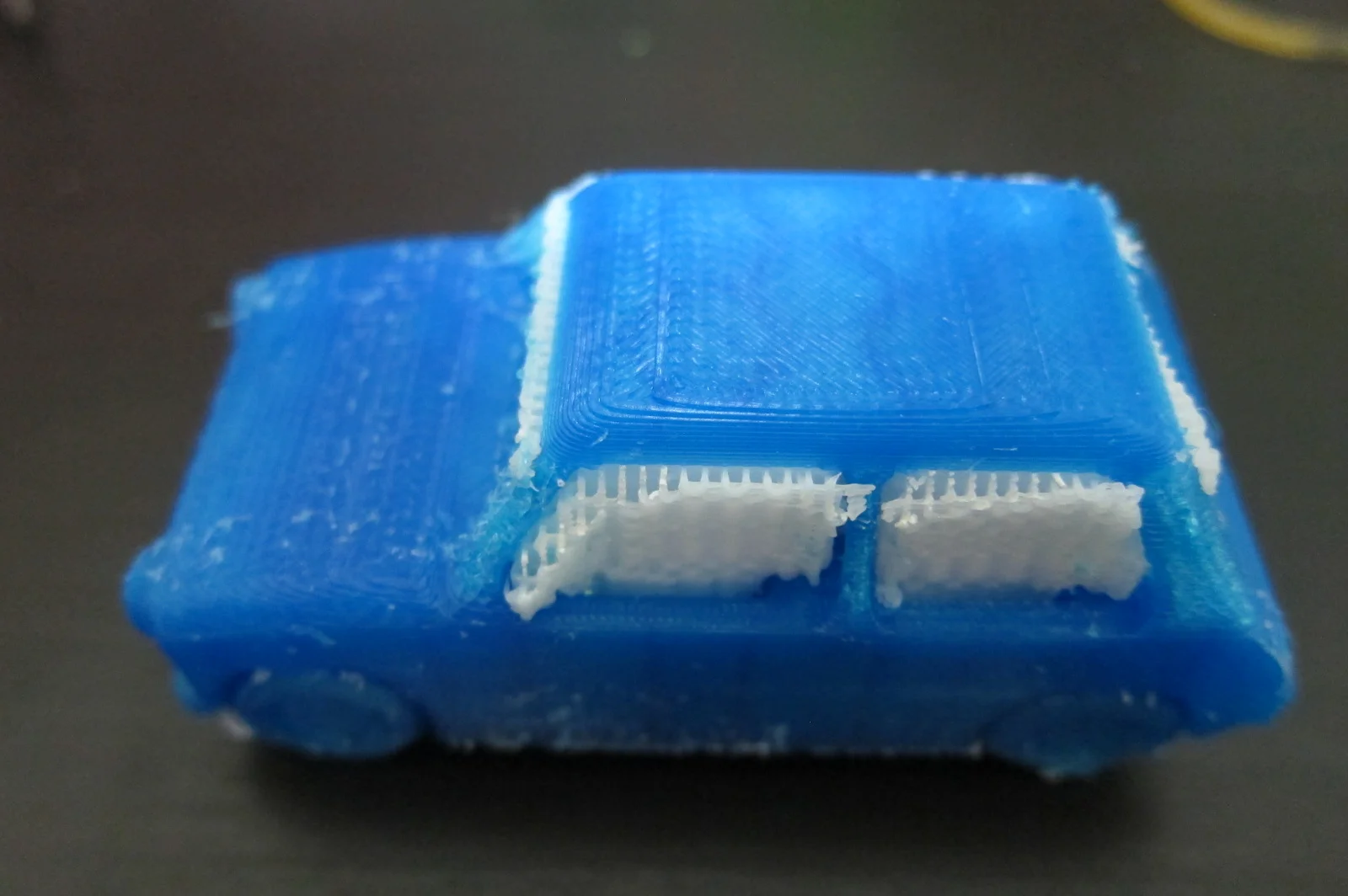

 1 done printing

1 done printing

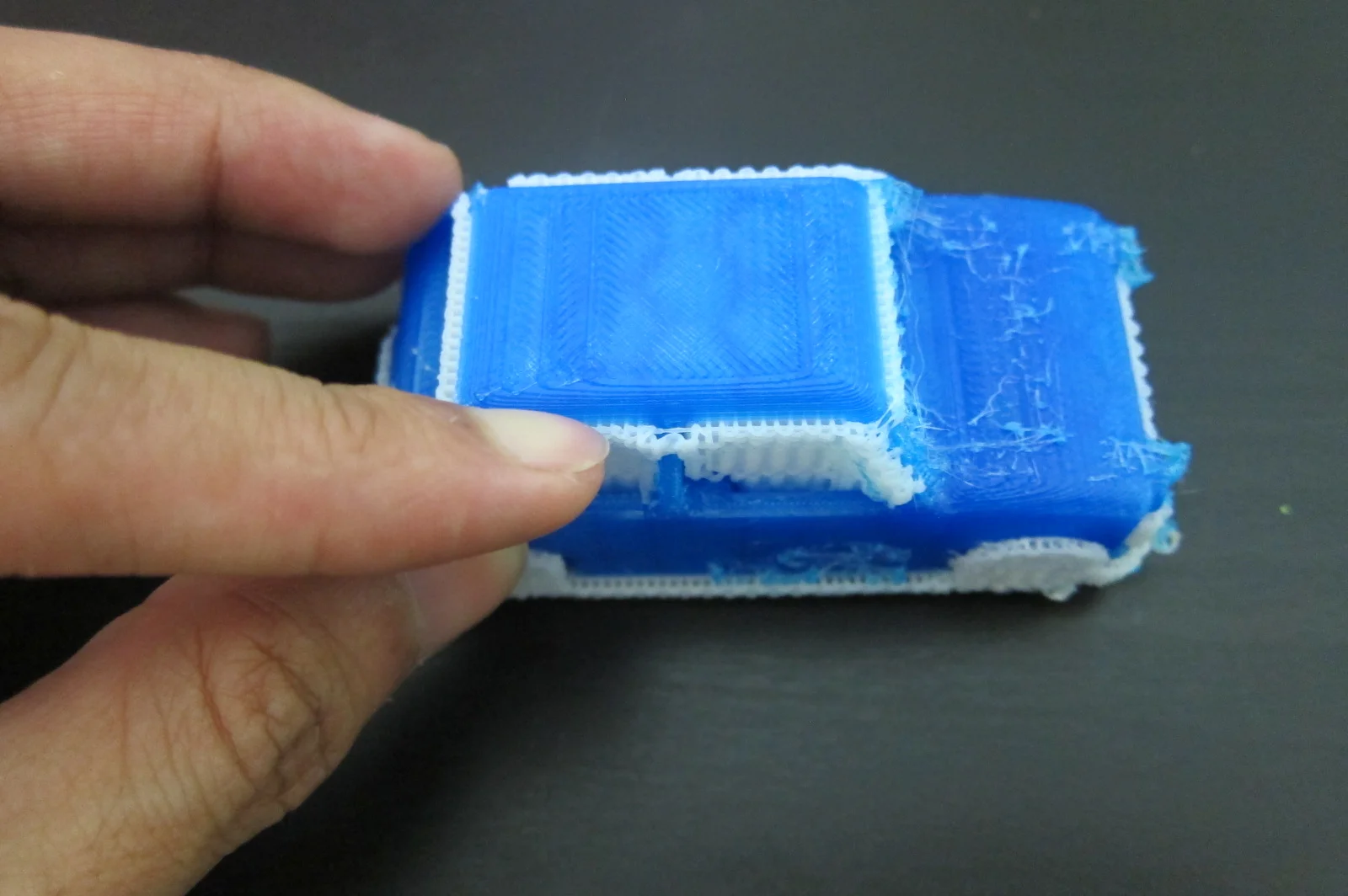

 2 using hands to cut off support filament

2 using hands to cut off support filament

 3 after cut off

3 after cut off

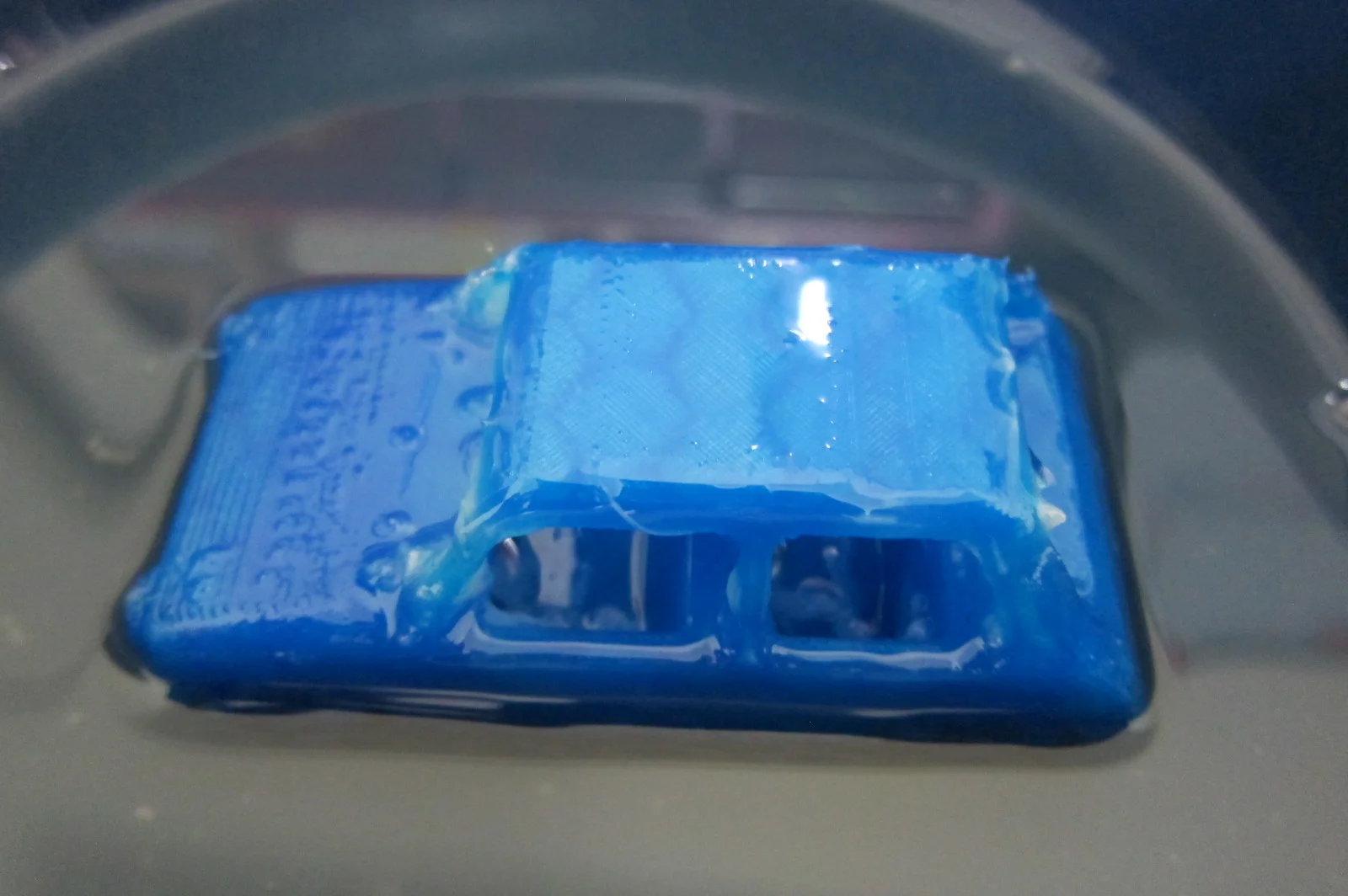

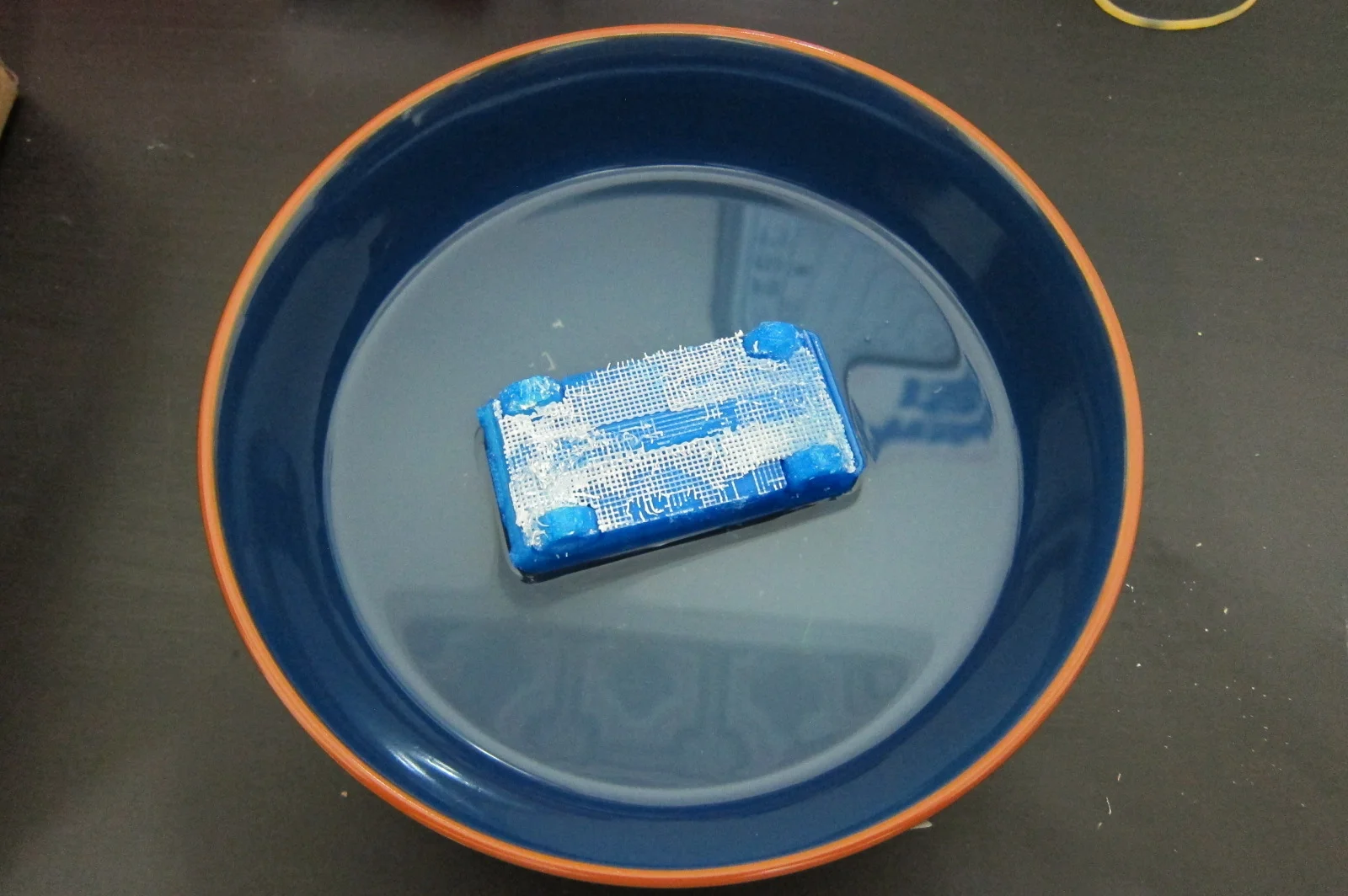

After above 3 steps, please prepare a bowl, pour in the lemonene. The height should be higher than your work piece. Put your work piece into the bowl.

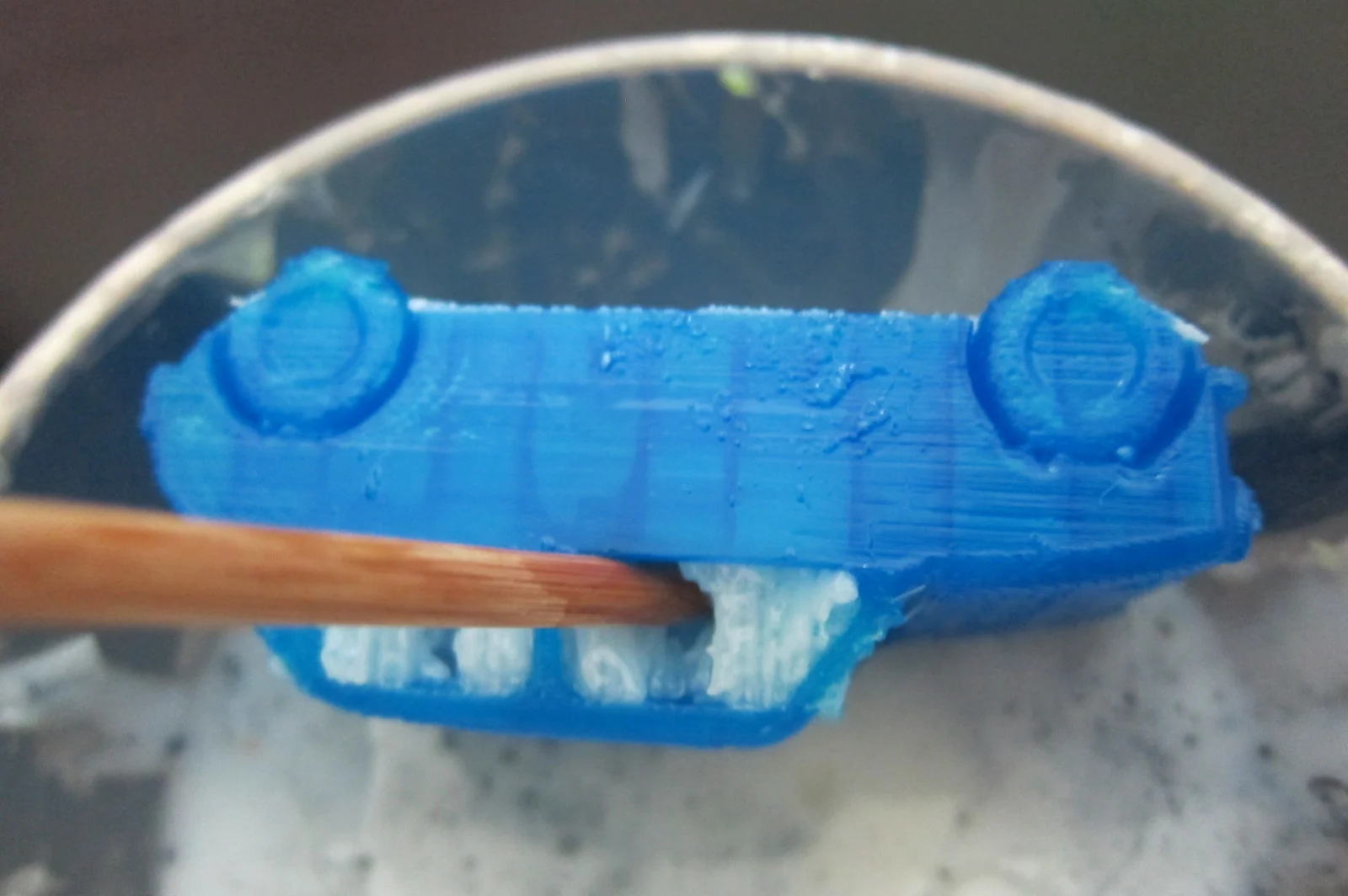

After acid it 5~10mins, please prepare another bowl for catching soft dissolvable filament. Then using a sticker or chop sticker to move out the soft dissolvable filament. This step is for saving Lemonene, so that soft dissolvable filament will not precipitation in the bowl. So the lemonene can keep using. After this step, put car into lemonene again to dissolve remained dissolvable filament.

After 30 mins after (sometimes several hours), take out of model, using brush with detergent cleaning to clean it. and it is completed.


Of course, use glove will be better for your hand or ..............................

seeing is believing!!!!
